Hebei Anmei Electrical Equipment Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm ansi tsawg voltage bushing nyob rau hauv Suav teb, kuj txhawb kev pab customized. Yog hais tias koj yuav mus yuav zoo ansi tsawg voltage bushing ua nyob rau hauv Suav teb, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas.

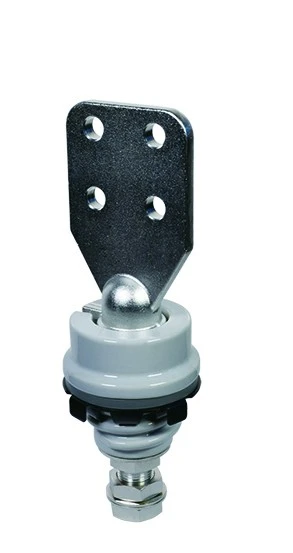

ANSI Tsawg Voltage Bushing
ANSI Tsawg Voltage Bushing yog ib qho tseem ceeb ntawm cov hluav taws xob rwb thaiv tsev uas siv dav hauv cov kua -cov khoom siv hluav taws xob sib xyaw ua ke, ncoo- mounted transformers, thiab switchgear daim ntawv thov. ANSI tus qauv rau cov hluav taws xob tsis tshua muaj hluav taws xob tau hloov kho nrog kev loj hlob ntawm North American fais fab kev lag luam, tsim kom muaj kev sib koom ua ke uas ua kom muaj kev sib hloov thiab kev ntseeg siab thoob plaws cov khoom siv los ntawm cov tuam txhab sib txawv. Raws li cov khoom tseem ceeb ntawm transformer tank qhov hluav taws xob, qhov hluav taws xob tsis tshua muaj hluav taws xob ua haujlwm kom muaj kev nyab xeeb ntawm cov khoom siv hluav taws xob tsawg -voltage conductors los ntawm transformer sab hauv mus rau sab nrauv fais fab, muab ob qho tib si hluav taws xob rwb thaiv tsev thiab kev txhawb nqa txhua yam.
Kev ntsuas hluav taws xob
| Parameter | Txheem tus nqi |
|---|---|
| Chav Kawm Voltage | 1.2 kV (tus qauv), mus txog 52 kV |
| BIL Rating | 30 kV (tus qauv), mus txog 200 kV |
| AC tiv thaiv (1 min) | 10kv wb |
| Nruam Tam sim no | 63 A – 1200 A+ |
| Max txuas ntxiv - mus rau -Ground | 600 V RMS |
Cov khoom xaiv
| Cheebtsam | Cov khoom xaiv |
|---|---|
| Lub cev rwb thaiv tsev | Thermoset polyester, Siab -temp nylon (PBT), Porcelain, Epoxy resin |
| Tus neeg xyuas pib / Stud | Copper CDA 11000, Tin{1}}plated tooj dag |
| Terminal Hom | Eyebolt, Spade (2-qhov / 4-qhov), Flag davhlau ya nyob twg |
| Mounting txiv ntseej | iav -cov khoom siv thermoplastic |
Cov yam ntxwv tseem ceeb
Kev Ua Raws Cai
Tag nrho ANSI Tsawg Voltage Bushings yog tsim thiab sim ua raws li ANSI / IEEE C57.12.25, IEC 60137, thiab ASTM cov qauv. Qhov no ua kom tsis muaj kev hloov pauv thiab sib raug zoo nrog cov qauv hloov pauv uas twb muaj lawm, txo cov khoom lag luam nyuaj rau cov khoom siv hluav taws xob thiab pab pawg tu.
Advanced Material Engineering
Polymer- lub cev bushings muab kev ruaj ntseg UV zoo dua, qhov kub thiab txias (txog 140 degree), thiab huab cua muaj peev xwm piv rau cov qauv porcelain. Thermoset polyester thiab PBT tebchaw muab zoo heev dielectric zog, mechanical toughness, thiab ntev kev pab cuam lub neej nyob rau hauv xav tau ib puag ncig sab nraum zoov.
Txhim khu kev sealing System
Kev khaws cia tag nrho Buna-N gaskets tswj compression thiab tiv thaiv UV degradation. Kev ntsuas roj sib xws tau lees paub tias tsim nyog nrog ob qho tib si ntxhia thiab ester-raws li cov kua dej hloov pauv. Helium huab hwm coj spectrometer xau kuaj xyuas kom ruaj khov ntawm 1.0 × 10⁻⁶ atm cc / sec rhiab heev.
Cim npe nrov: ansi low voltage bushing, Tuam Tshoj ansi low voltage bushing manufacturers, lwm tus neeg, Hoobkas
